Brass Swiss Machining | Brass Swiss Machined Parts | Brass Swiss Machined Components
Brass Swiss Machining, Brass Swiss Machined Parts, Swiss Machined Brass Components, Swiss Turning
Price $ 14.50/kilogram
We are one of the leading manufacturers and exporters of Brass Swiss Machined Parts from India. We have been supplying precision-engineered Swiss machined components to the world market for many decades. Our vast expertise, modern infrastructure, and global customer base have made us a preferred supplier in high-precision industries. Brass Swiss Machining is a specialty area of our manufacturing, ideal for producing long, slender parts with tight tolerances and high surface finish requirements. Utilizing advanced Swiss-type lathes, we ensure consistent accuracy and repeatability in both large and small batches. These machined components are used in critical applications across Aerospace, Medical, Telecommunications, Automotive, Instrumentation, and Industrial Automation sectors.

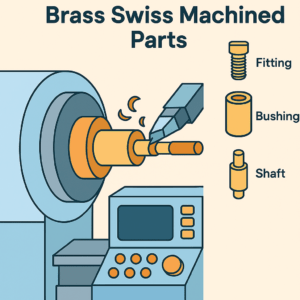

Overview Swiss Machining, also known as Swiss turning, is a precision CNC machining process that originated in the watchmaking industry of Switzerland. It is particularly well-suited for machining small, long, and complex parts. Brass, with its excellent machinability and corrosion resistance, is an ideal material for Swiss Machining.
Material Grades
| Material Grade | Standard | Composition | Application Characteristics |
|---|---|---|---|
| CW614N | EN 12164 (BS) | CuZn39Pb3 | Excellent machinability, general purpose |
| C36000 | ASTM B16 (USA) | CuZn36Pb3 | Free-cutting, high-speed machining |
| C37700 | ASTM B124 | Forging Brass | High strength, corrosion resistance |
| C46400 | ASTM B21 | Naval Brass | Marine applications, high corrosion resistance |
| HPb59-1 | GB/T (China) | CuZn40Pb2 | Precision machined parts |
Manufacturing Process
- Raw Brass rods (usually long shank rods) are selected based on the desired component specifications.
- Rods are fed into Swiss-type automatic lathes, which support the material very close to the cutting tools.
- Multiple operations like turning, drilling, milling, knurling, threading (including UNF/UNC and Metric), and grooving are performed in a single setup.
- In-line measuring systems ensure dimensional accuracy throughout the production.
- Parts are deburred, ultrasonically cleaned, and optionally surface treated as per requirements.
Machinery Used
- CNC Swiss-Type Sliding Head Lathes
- CAM-controlled Swiss Lathes for high-speed machining
- Live tooling machines for cross-drilling and secondary operations
- In-line gauging and video inspection systems

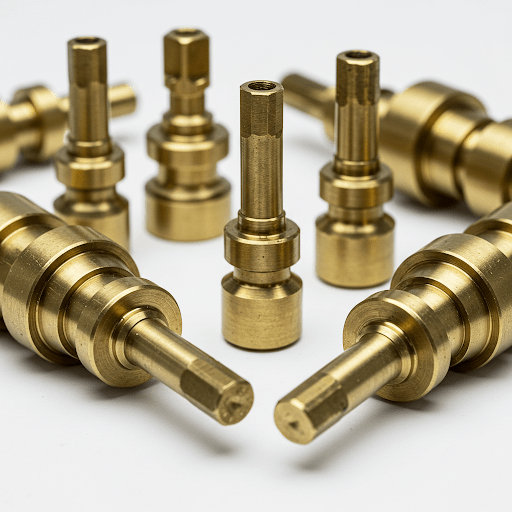

Typical Parts Produced
- Brass inserts

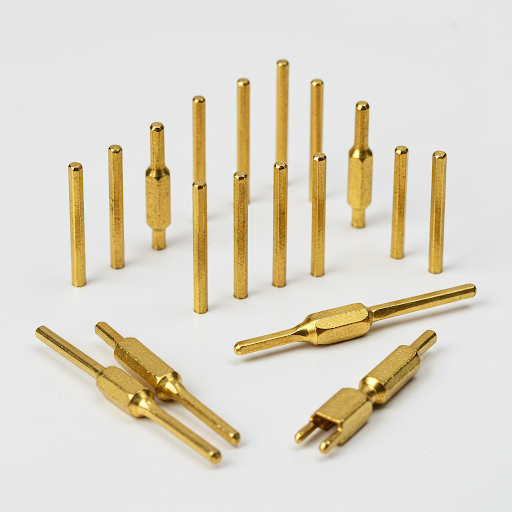

- Brass Pins, Brass electric pins
- Threaded standoffs
- Valve pins
- Brass parts for pressure and temperature gauges and thermostats
- Electrical contact pins
- Fittings and nozzles
- Medical implants (non-load-bearing)
Finish
- Natural Polished Brass
- Nickel Plated
- Chrome Plated
- Tin Plated
- Passivated
Industries Using These Parts
- Aerospace and Aviation
- Medical and Healthcare
- Electrical and Electronics
- Instrumentation
- Automotive and EV components
- Defense and Military Systems
Tolerances Typical tolerances for Brass Swiss Machined parts:
- Diameter: ±0.005 mm
- Length: ±0.01 mm
- Concentricity: < 0.01 mm
- Surface Finish: Ra 0.8 – 1.6 μm
Turnaround Time Standard lead time: 4 to 6 weeks (includes tooling, machining, inspection, and packaging)
Performance Metrics
- Process Capability Index (Cpk): > 1.33
- First Pass Yield: > 98%
- Compliance with RoHS/REACH
- 100% Inspection possible on request
Dimensional Size Range
| Parameter | Range |
| Diameter | 1 mm to 32 mm |
| Length | Up to 300 mm |
| Threading | UNF/UNC, Metric, BSW |
| Hole Dia | 0.3 mm min (micro-drilling) |
Why Choose Our Brass Swiss Machined Parts? Our facility is equipped with modern machines, and our team has decades of global exposure. We are customer-centric with an agile production approach and custom packaging services. Our highlights:
- In-house design and prototyping
- 3-decade global export experience
- Fast turnaround & on-time delivery
- Multilingual communication support
- Customized labelling, logo engraving & private branding
Packaging and Shipping
- Cleanroom packing (for medical/electronic parts)
- Vacuum-sealed or desiccant-packed bags
- Export-worthy corrugated boxes/crates
- Palletized and container-ready loads
International Standards Complied
- ASTM B16, B124, B21 (USA)
- EN 12164/12168 (UK/Europe)
- DIN 17660 (Germany)
- JIS H3250 (Japan)
- GB/T 2059 (China)
Typical Q&A Session
- What is the maximum length of part you can machine? Up to 300 mm.
- Do you offer RoHS-compliant finishes? Yes, all coatings can be made RoHS-compliant.
- Can I order small quantities? Yes, our flexible production supports prototypes to mass runs.
- Can you match customer-supplied drawings? Yes, including full GD&T.
- Are inspection reports provided? Yes, CMM and First Article Reports (FAI) available.
- Can you supply with custom labels? Absolutely, including barcoding and QR codes.
- Do you offer inventory stocking? Yes, for high-volume repeat customers.
- What CAD formats do you accept? STEP, IGES, DWG, DXF, STL.
- Can you provide samples? Yes, on request.
- What surface finishes are possible? Polished, Nickel, Chrome, Tin, or as per drawing.
Customer Testimonial “We’ve been sourcing Swiss machined Brass fittings from them for over five years now. The quality, consistency, and responsiveness are top-notch. Their ability to deliver even tight-tolerance parts on time has helped us scale.”
- John S., Boston, MA, USA
Glossary of Terms
- Swiss Machining: A precision turning method ideal for long, slender components.
- Sliding Head Lathe: A machine where the bar stock moves while the tools are stationary.
- Ra (Surface Roughness): Measurement of the surface finish smoothness.
- Threading: Creating helical grooves for fasteners or fittings.
- Deburring: Removing sharp edges or burrs post-machining.
